Rheem Gas Furnaces
From a dependable 80% AFUE workhorse to a 98% AFUE variable-speed system, Rheem's Endeavor Line furnaces cover every efficiency tier, all built on the same 360+1 quality standard and backed by strong warranty coverage.

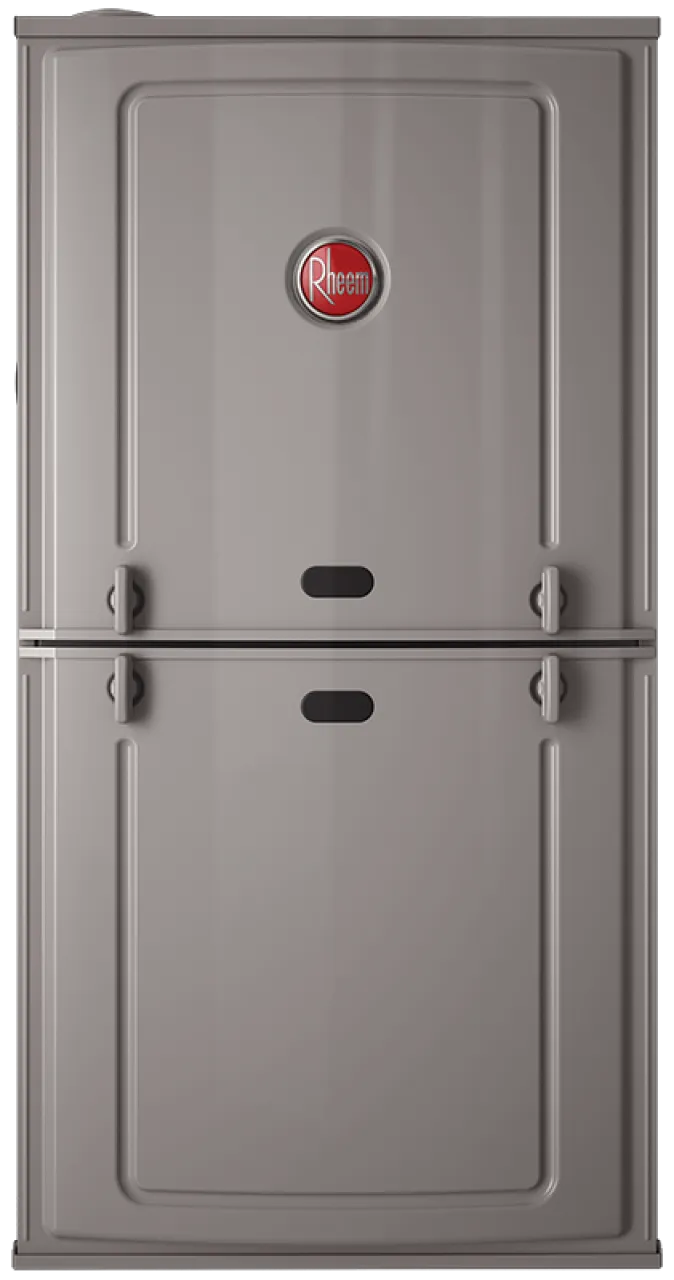

R801T
Endeavor Line Classic Series
- Efficiency
- 80% AFUE
- Input rate
- 50,000 to 150,000 BTU/h
- Heating stages
- Single-stage
- Motor
- Constant torque
- PlusOne Diagnostics: industry-first 7-segment LED for quick service
- Direct Spark Ignition for reliability and longevity
Warranty: 10-Year Conditional Parts + 20-Year Heat Exchanger

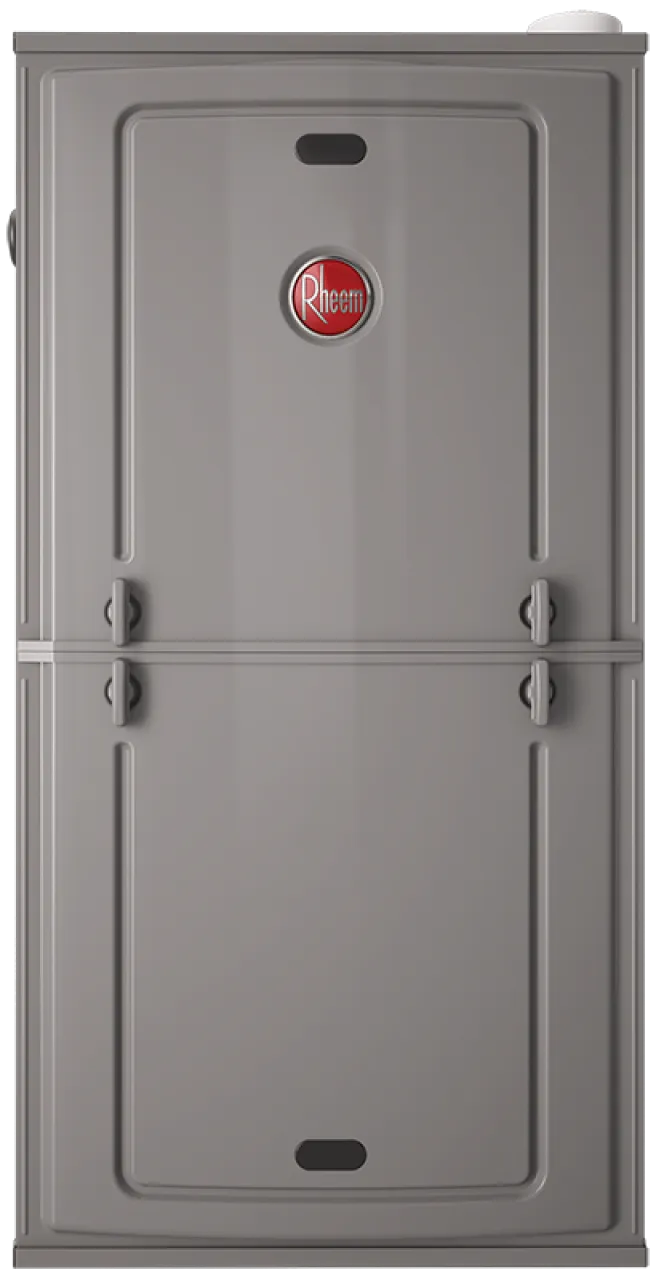

R951T
Endeavor Line Classic Series
- Efficiency
- 95% AFUE, ENERGY STAR certified
- Input rate
- 40,000 to 115,000 BTU/h
- Heating stages
- Single-stage
- Motor
- Constant torque
- Up to $85/year in energy cost savings vs. an 80% AFUE furnace
- PlusOne Water Management System shuts off the furnace if a blocked drain is detected
Warranty: 10-Year Conditional Parts + Limited Lifetime Heat Exchanger

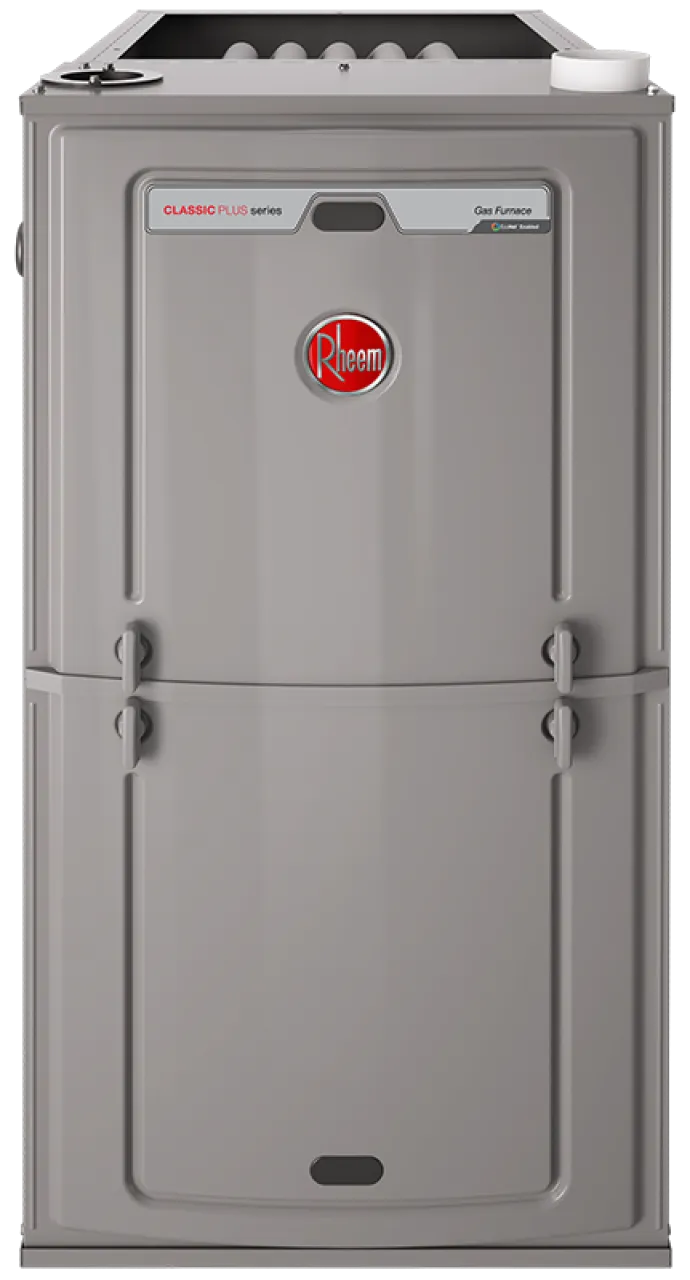

R962V
Endeavor Line Classic Plus Series
- Efficiency
- 96% AFUE, ENERGY STAR certified
- Input rate
- 40,000 to 115,000 BTU/h
- Heating stages
- Two-stage
- Motor
- Variable speed, EcoNet enabled
- Built-in Bluetooth for faster contractor install and service
- Insulated cabinet and variable-speed airflow for quieter operation
- Works with the EcoNet Smart Thermostat for remote control and alerts
Warranty: 10-Year Parts + Limited Lifetime Heat Exchanger + 10-Year Conditional Unit Replacement

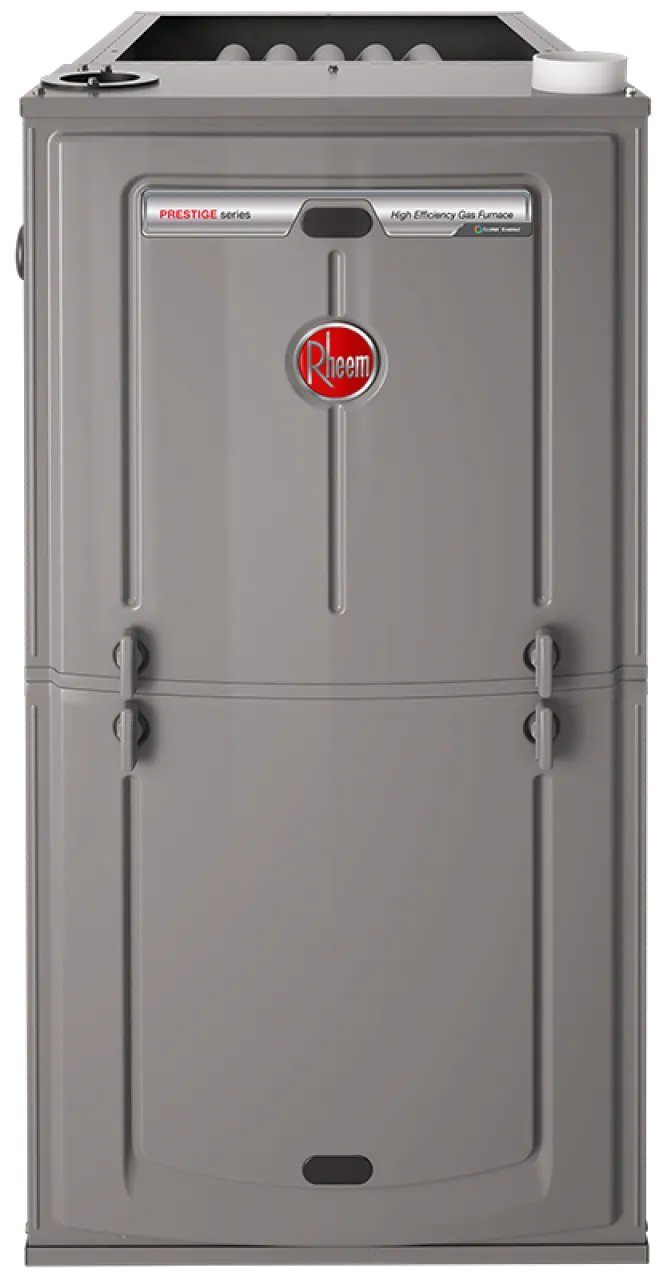

R98MV
Endeavor Line Prestige Series
- Efficiency
- 98% AFUE, ENERGY STAR certified
- Input rate
- 60,000 to 115,000 BTU/h
- Heating stages
- Modulating (40% to 100%)
- Motor
- Variable speed, EcoNet enabled
- Quietest tier in the lineup, one of the highest efficiencies available
- Modulating gas valve continuously matches output to demand
- Works with the EcoNet Smart Thermostat for remote control and alerts
Warranty: 10-Year Limited Parts + Limited Lifetime Heat Exchanger + Conditional Limited Lifetime Unit Replacement
